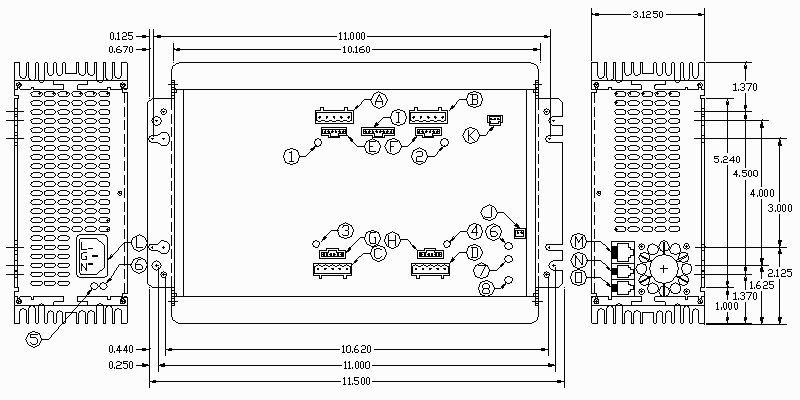

HARDWARE FEATURES
-
44 Volt Current Drive 1/3 amp to 5 amp peak
-
Programmable Currents for Holding, Ramping, Travel,
and Idle
-
Eight bit micro-step resolution
-
Full step rate to 25,000/sec
-
Bi-polar 4-wire H-bridge D-Mos Drive
-
Electronic Fusing for each axis
-
Universal Power input 90-265 vac 50-60 Hz
-
Convection and Fan Cooling
-
Axes limits and encoder inputs
-
RS-232 Control to 115.2 kBaud
-
5th axis for Laser Modulation or Spindle Speed control
-
25 Mips RISC Micro-processor
-
32 Megabyte Motion Memory
-
Total digital control, no jumpers, switches, or pots.
-
2 Axes encoder training inputs for hand wheels or joystick
-
Safety interlock input
-
RS-485 Networking to optional I/O Multiplexers,
Operator
Panels, Etc.
-
Expansion Slot for custom interfaces, CAN, Ethernet, etc.
-
Can double up axes to drive 4-phase Stepper Motors.
|
SOFTWARE FEATURES
-
Coordinated 3 axes continuous path moves
-
Programmable Accelerations
-
Multiple Acceleration Ramps for S-curves, etc.
-
Preset and Variable Speeds
-
Parameterized Homing Routines
-
Interactive Modes for Positioning
-
Emergency Stop
-
Coordinated 5th axis for Laser Modulation with tickle.
-
32 bit positioning (22.10 Steps.Microsteps)
-
Open or Closed Loop Operation
-
Sample programs in C, FORTH, and PASCAL for low level control
-
Can store multiple programs locally and run stand alone
-
High level application programs, interpreters for HPGL and G-code
-
ssLASER Windows 95/98/ME printer driver interface, vector and raster with
ssLASER
control panel.
-
DOS based evaluation program for setup and testing
-
Motor tuning, matching drive
wave form to motor poles
-
Hysteresis correction for super accurate positioning
-
Arbitrary assignment of axes for coordinated moves
-
Axes locking with arbitrary phasing
|
.....
.....
.....
.....
